What it shows
| View | Use it for |
|---|---|

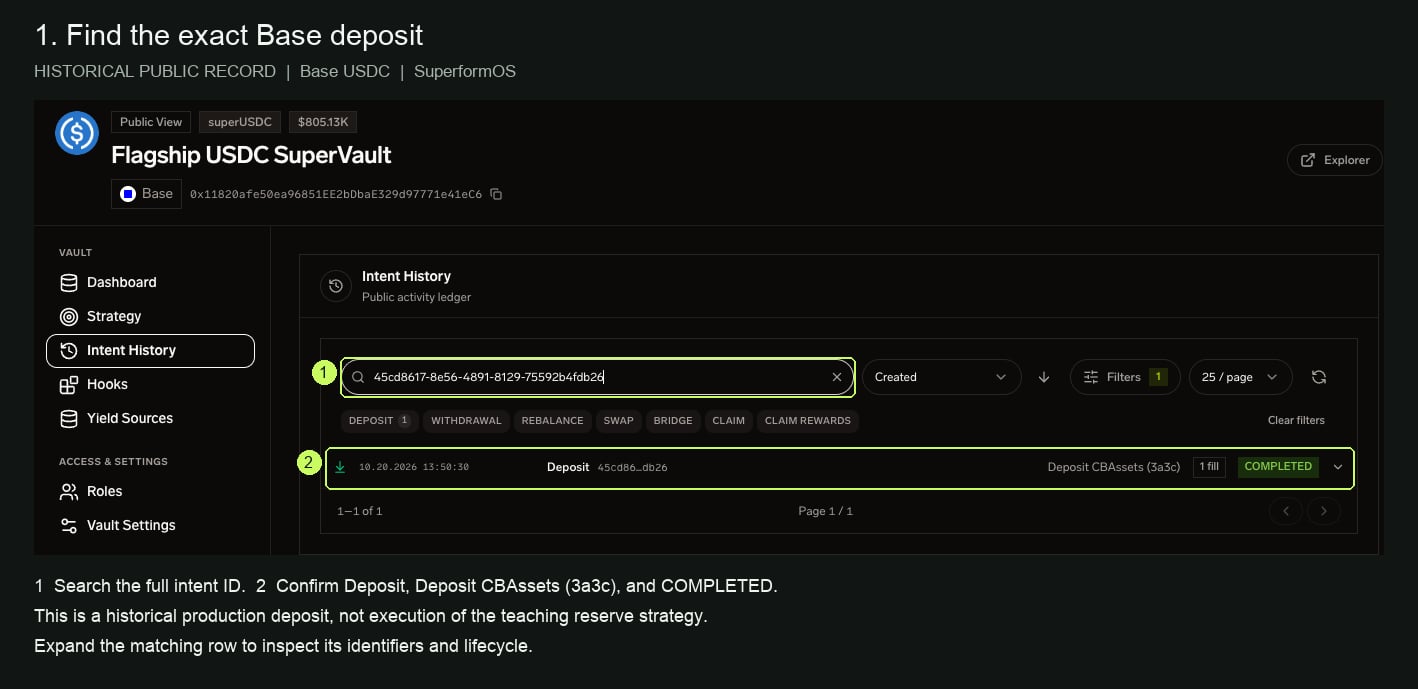

| Intent list | Search and filter intents across vaults and strategies. |
| Facets | Count by state, action, chain, vault, and strategy. |

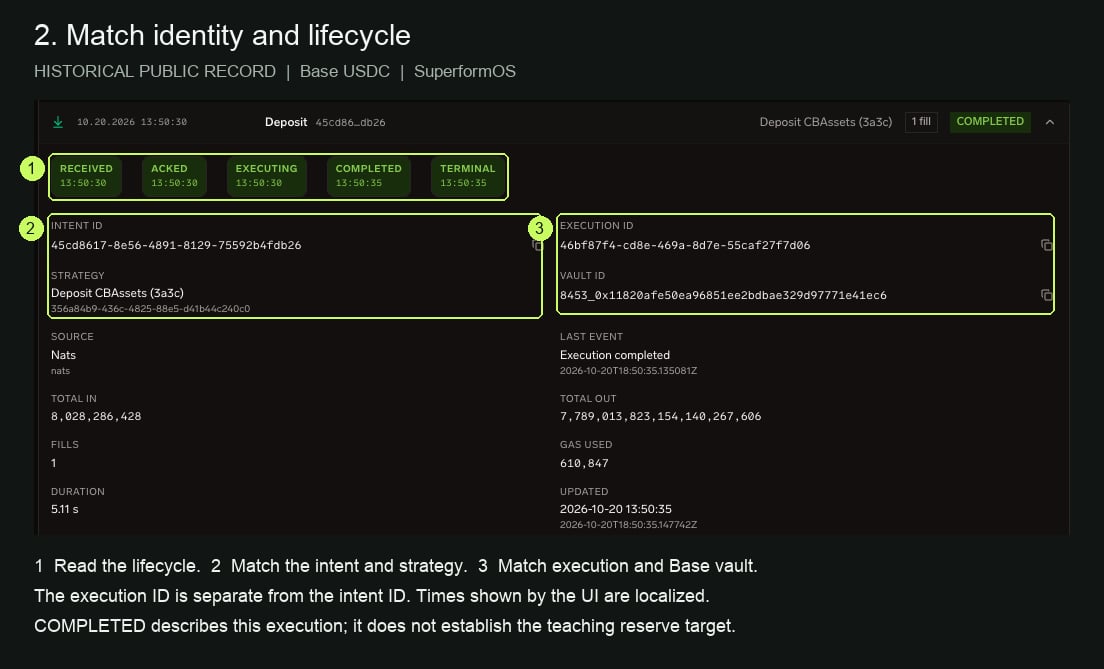

| Lifecycle strip | See the current OMS lifecycle state and timestamps. |

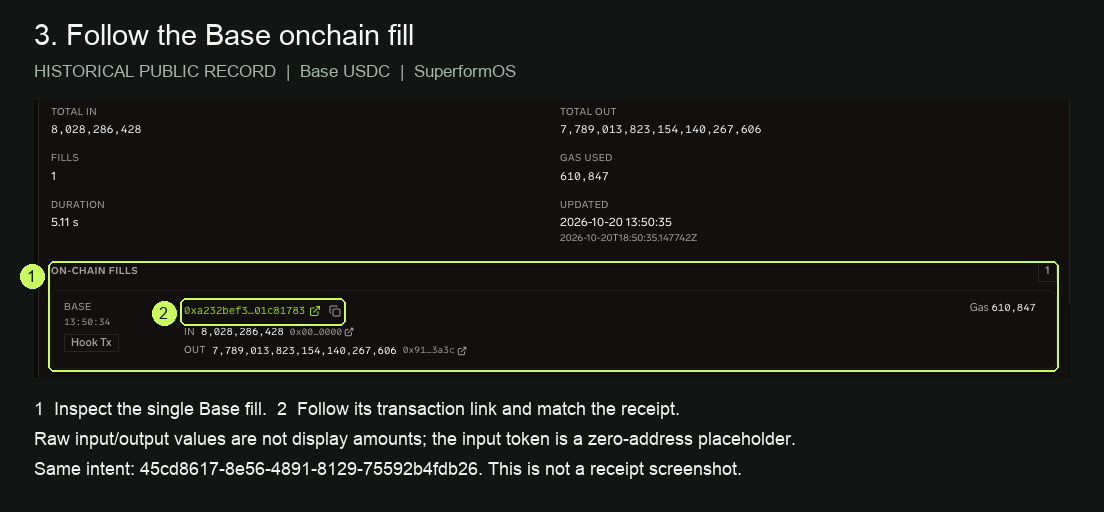

| Fills table | Inspect per-fill venue, token in/out, amounts, gas, fees, and fill time. |
| OMS events | Audit message type, sequence, payload, and source. |
| Signal snapshot | See the Strategy Engine signal context that produced the intent. |
Lifecycle states
The explorer uses the OMS lifecycle vocabulary:RECEIVED, ACKED, STAGED, PLANNED, EXECUTING, COMPLETED, ABORTED, EXPIRED, FAILED, CANCELED, and UNKNOWN for rows that cannot be normalized.
How it maps to OMS
The Strategy Engine projects OMS events and backfills intostrategy_intent_log. Each row can include:
intent_id,execution_id,correlation_id- strategy and vault IDs
- last event sequence and message type
- ack/executing/completed/terminal timestamps
- error code and message
- total amount in/out
- total gas used
- fills count
- signal snapshot and summary
- source:
engine,nats, orbackfill
API mapping
| Endpoint | Purpose |
|---|---|
GET /api/v1/intents | Global intent search. |
GET /api/v1/intents/facets | Facet counts for filters. |
GET /api/v1/intents/{intent_id} | Intent detail. |
GET /api/v1/intents/{intent_id}/fills | Fills for one intent. |
GET /api/v1/intents/{intent_id}/events | OMS event audit rows. |
GET /api/v1/fills | Global fill search. |
Common reads
| Symptom | Check |
|---|---|

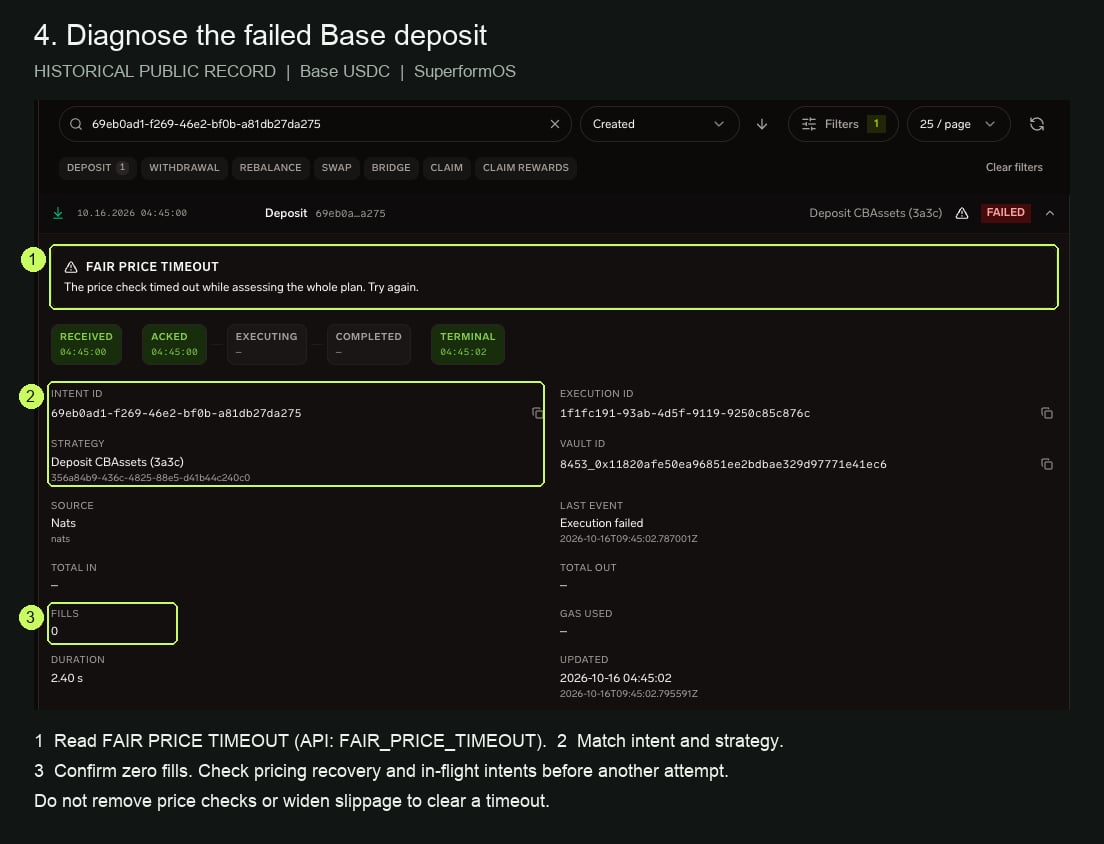

| Intent never mined | Look at EXECUTING events, hook transaction fields, and gas budget. |
| Intent completed with no visible position change | Check fills and amount out fields; some fields can be null until OMS hydration completes. |
| Strategy appears blocked | Check emergency locks, kill switch, session-key readiness, and merkle proof availability. |
| Duplicate-looking rows | Compare intent_id, execution_id, and correlation_id; retries and backfills can share context. |
